Wiha TorqueCheck Torque Tester.
For Connection to External Torque Transducer, Serie 290-400.
Design: Base Torque Tester for Connection to External Wiha Torque Transducer.
Robust metal housing, 16-character LCD display,
operation via touch pad panel.
Automatic measuring range detection of the connected transducer.
Values displayed in all common units of measurement.
Tolerance value entry. Calibrated for clockwise / counter-clockwise
measurements.
Dimensions approx. 180x120x70 mm, weight approx. 1500 g.
Possible to mount to the working bench by means of 3 screws.
Power supply through 3 batteries 1.5 V IEC LR 6 (AA) or 3 rechargeable
batteries, 2300 mA/h (AA).
Display: Select between German / English.
Mode: Auto: Provides indication of the maximum torque applied;
with "Auto Reset" and "First Peak/Second Peak" detection.
Peak Hold: Provides indication of the maximum torque applied (First Peak).
Track: The current measured value is continuously shown in the display.
Application: Testing and calibration of manual torque screwdrivers, torque wrenches, click-type wrenches.

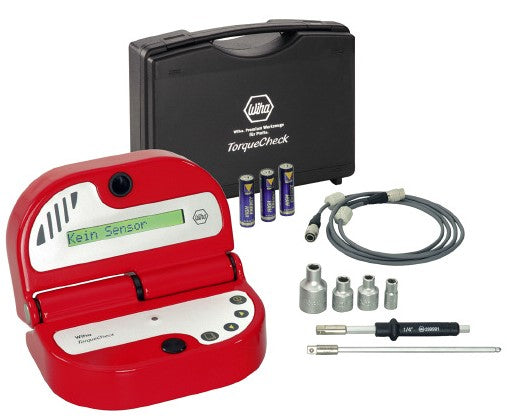

Delivery: In robust plastic case including 4 adapters, 2 adapter blades for
Wiha torque tools, 1 cable, 3 batteries.
